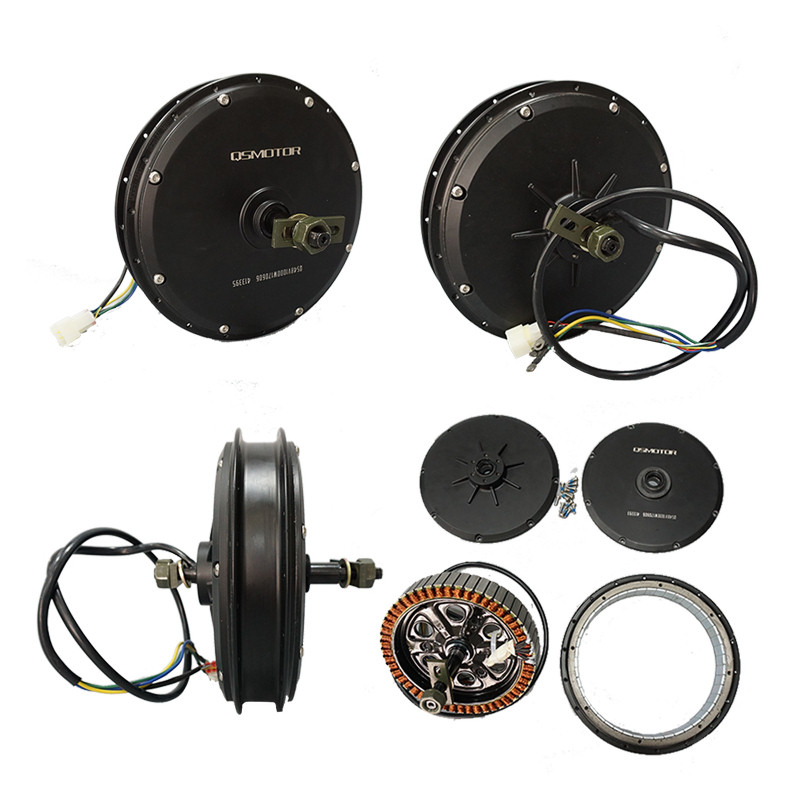

QS 205 35H v1 135mm eBike Hub Motor

Description

The QS 205 35H v1 is an incredibly versatile hub motor that offers an excellent balance of torque and speed. It accepts an input voltage of 48-96 volts and when paired with one of our controllers, it can be tuned to your desired performance level. 135mm drop outs make this suitable to fit most standard mountain bike rear ends. This eBike hub motor is threaded to accept freewheels up to 7 speeds.

Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
Motor Design: Double axle without rim (not integrated), 36 spoke holes, OD 3.4mm
Magnet Height: 35mm, 23 pole pairs
Stator: Steel Core
Rated Power: 52v @ 30A = 1,560 watts, 60v @ 40A = 2,400 watts, 72v @ 50a = 3,600 watts
Rated Voltage: 48V-96V
Speed: 45KPH as default (24-120KPH, optional)
kV: 8.5
Max Torque: ~100N.m
Max Efficiency: above 87.3%
Continuous Battery Current: 20.8A (60V)
Suggest Peak Phase Current: 89-112A
Thermic Probe: KTY83/122
Working Temperature: 70-120℃ , peak 150 ℃
Brake type: Disc Brake, PCD6*44mm for bicycle
Drop-outs: 135mm
One Set of hall sensors with waterproof connectors
3mm² Cross Section of Phase Wire (not include insulation layer)
Hall Sensor Phasing angle: 120 degree
Waterproof Grade: IP54
N.W./G.W.: 8.04kg/9.45kg
Package Dimension: 34cm*34cm*33cm/piece
